1400℃ Electric Muffle Furnace

Our Services:
Furnace Consultation, Indonesia | Furnace Installation, Indonesia | Furnace Spart Parts, Indonesia

Coverage Area:
Jakarta, Tangerang, Bogor, Bekasi, Bandung, Surabaya, Cikarang, Depok, Semarang, Yogyakarta, Medan, Makassar, Palembang, Samarinda, Palangkaraya, Pontianak, Denpasar, Padang, Manado, Palu, Bandar Lampung, Tarakan, Kendari, Malang, Balikpapan, Indonesia

Product Description

Features

The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy and saving above 50%.
The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%

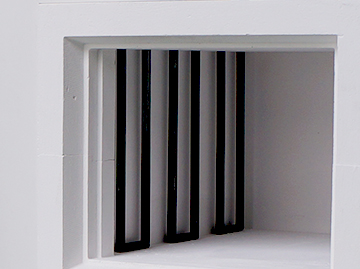

The heating element is made of high-quality silicon carbide rod, which can bear a large load, a stable and long service life; the silicon carbide rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
The heating rate is fast, generally 0-30℃/min to be set freely
High precision of temperature control, small temperature compensation, and temperature accuracy ± 1 ° C
Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
Electronic components are used Schneider brand, with leakage protection, safe and reliable
The machine will send out an alarm signal to the over-temperature during the working process and automatically complete the protection action.
When the instrument program is set, just press the run button and the next work will be completed automatically
Optional air inlet can be used to purge and protect inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.

S Type High Quality Silicon Carbide Rod (SIC) Heater

1800 Gray Polycrystal Alumina Ceramic Fiber Material

Technical Parameters

Model	WTM-3-14A	WTM-8-14A	WTM-12-14A	WTM-18-14A	WTM-27-14A	WTM-36-14A	OEM
Inner Dimension (WxDxH)mm	150×150×150	200×200×200	200×300×200	250x300x250	300×300×300	300×400×300	Any size
Outer Dimension (WxDxH)mm	490×530×750	575×610×825	590×680×835	610×700×860	650×670×900	660×800×910	-
Type	Benchtop
Furnace Structure	Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature	1400°C
Continue Temp.	1600°C
Power Supply	220V/2kW	220V/4kW	220V/5kW	220V/6kW	380V/7kW	380V/13kW	-
Heating Element	High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material	High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision	±1°C
Thermocouple	B type
Temp Controller	YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts	SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate	≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection	Overheat and thermocouple-break alarm
Certification	ISO9001 /CE/ SGS
Furnace Shell	High quality cold-rolled steel sheets CNC processing
Insulation	High quality thermal insulation material to ensure a good uniformity
Accessories	One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional	Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
