1200°C Chamber Muffle Furnace

Our Services:
Furnace Consultation, Indonesia | Furnace Installation, Indonesia | Furnace Spart Parts, Indonesia

Coverage Area:
Jakarta, Tangerang, Bogor, Bekasi, Bandung, Surabaya, Cikarang, Depok, Semarang, Yogyakarta, Medan, Makassar, Palembang, Samarinda, Palangkaraya, Pontianak, Denpasar, Padang, Manado, Palu, Bandar Lampung, Tarakan, Kendari, Malang, Balikpapan, Indonesia

Product Description

Main Features

Integrated Structure with elegant design.
Chamber Materials: Vacuum forming ceramic fiber, which has the advantage of no powder drops off with high temperature, and saving energy more than 50%.
SHIMADEN (Japan) Microprocessor based self-tuning PIO control provides optimum thermal.
Long life type N thermocouple.
CE compliant.
Built-in RS485 port and USB adaptor as optional setting for computer control, it needs to add extra fees.

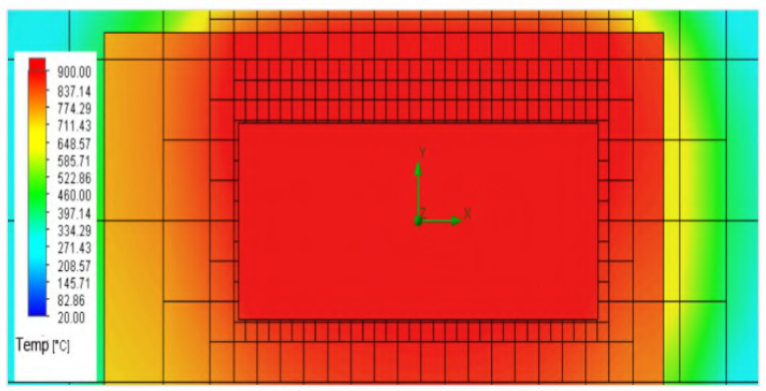

Heat Distribution Profile Diagram

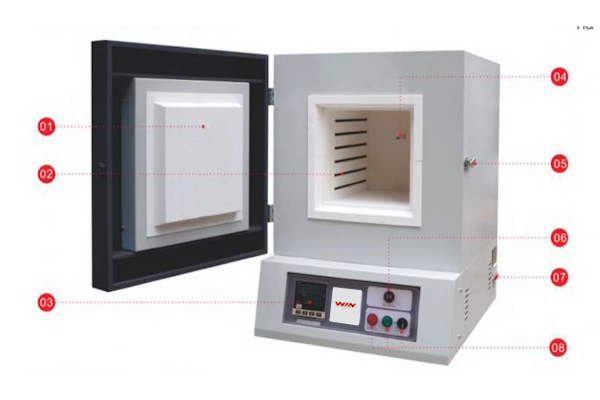

01	Ceramic Insulation Door
02	HRE Resistance Wire
03	Shimaden Temperature Controller
04	N Type Thermocouple
05	SS304 Safty Buckle
06	Sound -light Alarm
07	Schneider Air Switch
08	Operating Buttons

Technical Parameters

Model	WTM-1-10A	WTM-3-12A	WTM-6-12A	WTM-8-12A	WTM-12-12A	WTM-18-12A	WTM-30-12A	OEM
Inner Dimension (WxDxH)mm	100×100×100	150×150×150	180×230×150	200×300×120	200×300×200	250×300×250	300×500×200	Any size
Outer Dimension (WxDxH)mm	250×240×350	430×465×620	460×570×660	480×630×630	480×630×710	550×635×780	600×870×735	-
Type	Benchtop
Furnace Structure	Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature	1000°C	1200°C
Continue Temp.	950°C	1100°C
Power Supply	220V/1.2kW	220V/2.5kW	220V/3kW	220V/3kW	220V/4kW	220V/6kW	220V/7.5kW	-
Heating Element	High quality alloy resistance wire (HRE)
Chamber Material	High temperature polycrystal alumina ceramic fiber plate
Temp Precision	±1°C
Thermocouple	N type
Temp Controller	SHI MADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments
Electronic Parts	SCHNEIDER (France ) electronics brand
Heating Rate	≤25°C/min ( suggest 15-20°C/min for longer life using of furnace )
Safety Protection	Overheat and Thermocouple-break Alarm
Certification	ISO9001 /CE/ SGS
Furnace Shell	High quality cold-rolled steel sheets CNC processing
Insulation	High quality thermal insulation material to ensure a good uniformity
Accessories	One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional	Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible

Chamber Muffle Furnace>>

The Overview of Chamber Muffle Furnace

WINTHERM chamber muffle furnace range has a maximum operating temperature of 1800°C and chamber capacities up to more than 2000 liters. It is mainly used in the Universities.Colleges ,Laboratories, Institutions of higher learning, Scientific research institutions.Factory enterprises and apply to new material fields such as metal material, ceramic material, nano material.semiconductor material applications etc.

Chamber furnaces generally has a much larger working chamber size and suitable for different size and type of samples for heating.
For special usage of experiment process, it is better to consider fully to check the function or whether need to choose other type of furnace.
When choosing a furnace, also need to consider whether the special parts for samples. Like powders in crucibles and other tools.

HRE Resistance Wire

N-Type Thermocouple

PID Temperature Control

How to choose a Muffle Furnace ?

What is the operate temperature?

WINTHERM muffle furnace mainly with range of 1200°C, 1400°C, 1700°C and OEM 1800°C.
When real operating lower than 1200°C, we generally use high grade HRE spiral wire coils as heating element.
When real operating lower than 1400°C, we generally use high grade SIC ( Silicon Carbide Heaters ) heating element.
When real operating lower than 1700°C, we generally use high grade MoSi2 ( Molybdenum Disilicide Heaters ) heating element.
Continuous operating temp will be 100°C below the max temp design and right using will extend the furnace service life.
Furnaces are designed to operate at high temperatures. Operation below temperatures of approximately 600 °C will be less accurate and continuous use at low temperatures may reduce the element life of some furnaces, ie MoSi2 heated furnaces.

What is the chamber size required?

WINTHERM definite and real working chamber size with Width ( W ) , Depth (D) and Height (H) and you will see the specification with W*D*H (mm).
WINTHERM has wide range of working chamber size for chamber furnaces.

What is the temp controller?

WINTHERM standard furnaces controlled by SHIMADEN (Japan ) 32 segments digital PIO (proportional, integral and derivative) controller with accurate control.
Multi-segments and/or multi-program controllers are available as an option on most models or any other brand models as customer want to have.
The Furnace built-in RS485 digital communications port and USB adaptor as optional setting , allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

What is electric parts used?

WINTHERM furnace all use international parts to keep safety and quality.
Main Electric parts use France SCHNEIDER electronics parts.
Main Control use USA Crydom Solid Relay or German SEMIKRON SCR control.

What is your OEM furnace service?

WINTHERM has professional designers team and can design different furnaces according to customer technical request.
WINTHERM will confirm the OEM design with customers before final manufacturing.
