1700°C Laboratory Muffle Furnace

1700°C Laboratory Muffle Furnace

Our Services:
Furnace Consultation, Indonesia | Furnace Installation, Indonesia | Furnace Spart Parts, Indonesia

Coverage Area:
Jakarta, Tangerang, Bogor, Bekasi, Bandung, Surabaya, Cikarang, Depok, Semarang, Yogyakarta, Medan, Makassar, Palembang, Samarinda, Palangkaraya, Pontianak, Denpasar, Padang, Manado, Palu, Bandar Lampung, Tarakan, Kendari, Malang, Balikpapan, Indonesia

Product Description

Product Overview
  • 1700℃ WTM series products are mainly for the daily application development of the laboratory, high-quality furnace materials, and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.
Features
  • The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy and saving above 50%.
  • High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 °C.
  • The machine will send out an alarm signal to the over-temperature during the working process and automatically complete the protection action.
  • The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life; the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments.
  • When the instrument program is set, just press the run button and the next work will be completed automatically.
  • Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600℃ within 150 minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and efficient.
  • Electronic components are used Schneider products, with leakage protection, safe and reliable.
  • Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.
MoSi2 Rod Heater
B Type Molybdenum Disilicide (MoSi2) Heater

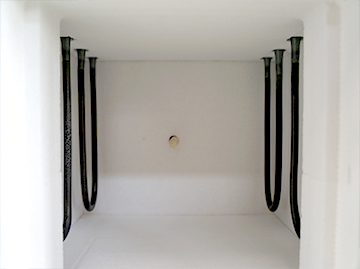

Furnace Inner Picture

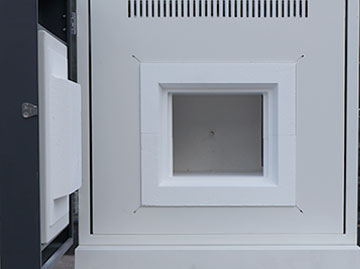

1800 Gray Polycrystal Alumina Ceramic Fiber Material



Technical Parameters
Model WTM-3-14A WTM-8-14A WTM-12-14A WTM-18-14A WTM-27-14A WTM-36-14A OEM
Inner Dimension
(WxDxH)mm		 100×120×100 150×150×150 200×200×200 200×300×200 250×320×250 300×400×300 Any size
Outer Dimension
(WxDxH)mm		 383×432×660 510×560×870 600×620×920 600×693×920 610×730×970 1040×840×1250 -
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Power Supply 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW -
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller YUDIAN brand 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts SCHNEIDER (France ) main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
