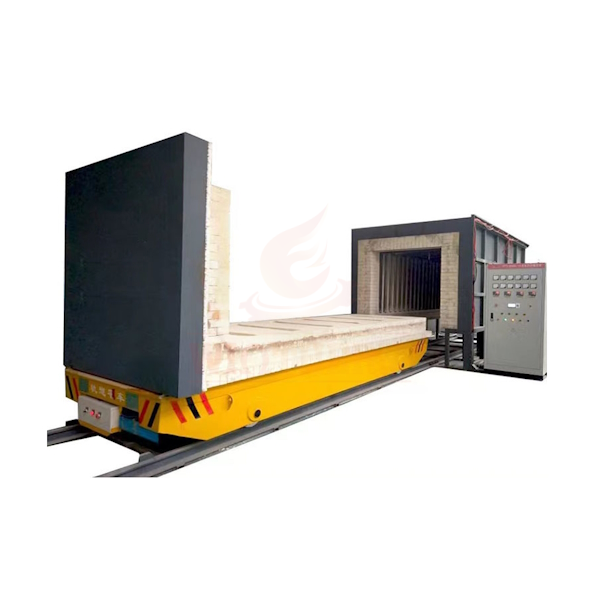

1400℃ Industrial Car Bottom Sintering Furnace

1400℃ Industrial Car Bottom Sintering Furnace

Model No.: WTT-2160-14A
Chamber Size: 1200*1500*1200mm
Continuous Temp.: 1300℃
Heating Element: Quality SIC Rod
Temperature Precision: ±1℃
Thermocouple: S Type
Our Services:
Furnace Consultation, Indonesia | Furnace Installation, Indonesia | Furnace Spart Parts, Indonesia

Coverage Area:
Jakarta, Tangerang, Bogor, Bekasi, Bandung, Surabaya, Cikarang, Depok, Semarang, Yogyakarta, Medan, Makassar, Palembang, Samarinda, Palangkaraya, Pontianak, Denpasar, Padang, Manado, Palu, Bandar Lampung, Tarakan, Kendari, Malang, Balikpapan, Indonesia

Product Description

Product Overview
  • 1400℃ car bottom furnace mainly consists of Chamber, temperature controller system, chamber door lifting system, car bottom walking system, individual temperature control cabinet, the car bottom and the chamber of the furnace are coupled and sealed with automatic limit. The switch button is integrated on the panel of the temperature control box, which is beautiful and easy to operate.
Features
  • The furnace material is high alumina mullite brick
  • The heating element is made of high-quality silicon carbide rod, which can bear large load, stable and long service life; the silicon carbide rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
  • The heating rate is fast, generally 0-20℃/min to be set freely, suggest 15 C/min
  • Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 32 segments
  • High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
  • Electronic components are used Schneider products, with leakage protection, safe and reliable
  • The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action
  • When the instrument program is set, just press the run button and the next work will be completed automatically
  • It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.
Application
  • 1400°C car bottom furnace (box type resistance furnace) mainly provides high temperature heat treatment environment for industrial, research institutes, factories and other industrial laboratories, and is applied to new materials such as metal materials, ceramic materials, nano materials, and semiconductor materials.
MoSi2 Rod Heater

Furnace Inner Picture



MoSi2 Rod Heater

Furnace Inner Picture


Technical Parameters
Model WTT-3-14A WTT-8-14A WTT-12-14A WTT-18-14A WTT-27-14A WTT-36-14A OEM
Inner Dimension
(WxDxH)mm
100×120×100 150×150×150 200×200×200 200×300×200 250×320×250 300×400×300 Any size
Outer Dimension
(WxDxH)mm
383×432×660 510×560×870 600×620×920 600×693×920 610×730×970 1040×840×1250 -
Type Benchtop
Furnace Structure Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relative accessories
Max Temperature 1400°C
Continue Temp. 1600°C
Power Supply 220V/2kW 220V/4kW 220V/5kW 220V/6kW 380V/7kW 380V/13kW -
Heating Element High quality Molybdenum Disilicide ( MoSi2) heater
Chamber Material High temperature 1800 Grade polycrystal alumina ceramic fiber material
Temp Precision ±1°C
Thermocouple B type
Temp Controller 518P Microprocessor PID controller as standard or any other brand as option
Electronic Parts  main electronic parts /High quality electric transformer
Heating Rate ≤15°C/min ( suggest 10°C/min for longer life using of furnace )
Safety Protection Overheat and thermocouple-break alarm
Certification ISO9001 /CE/ SGS
Furnace Shell High quality cold-rolled steel sheets CNC processing
Insulation High quality thermal insulation material to ensure a good uniformity
Accessories One pair of high temperature gloves, One pair of crucible tongs, one catalog and operation manual
Optional Paperless recorder, Stainless steel exhaust chimney, Quartz /Alumina crucible
